WDL-70B 70KW Medium Frequency Induction Melting Furnace for Metal Heating

Name: WDL-70B 70KW Medium Frequency Induction Melting Furnace for Metal Heating
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: WDL-70B
Availability: InStock

Nama Merek:	WONDERY
Nomor Model:	WDL-70B
Moq:	1 set
harga:	TO BE NEGOTIATED
Waktu pengiriman:	10 hari kerja
Ketentuan Pembayaran:	L/C, T/T

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal:

Cina

Sertifikasi:

Tegangan Masukan:

3-Fase 380V, 50/60Hz

Kebutuhan air pendingin:

0,2 MPa, 8 L/mnt

Rentang frekuensi:

30–80KHz

Akurasi kontrol daya:

± 0,5%

jenis tungku:

Pemanas Induksi

Nilai daya:

70kw

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

1000 set per tahun

Deskripsi produk

High-Efficiency 70KW Medium Frequency Induction Melting Furnace for Metal Heating | WDL-70B Series

Professional-Grade 70KW Medium Frequency Induction Melting Furnace – WDL-70B Series

WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. offers the advanced 70KW Medium Frequency Induction Melting Furnace, model WDL-70B Series, engineered for reliable and efficient metal heating, melting, and heat treatment applications. Designed with robust IGBT power technology and proprietary converter control systems, this induction furnace ensures superior performance, energy savings, and minimal maintenance requirements.

Ideal for continuous industrial operations, the WDL-70B supports a 100% duty cycle, allowing 24/7 operation at full power without interruption. Its intelligent control system features constant current and constant power modes, along with adjustable timing functions for heating and holding cycles (0.1–99.9 seconds), ensuring precise temperature control and repeatable results.

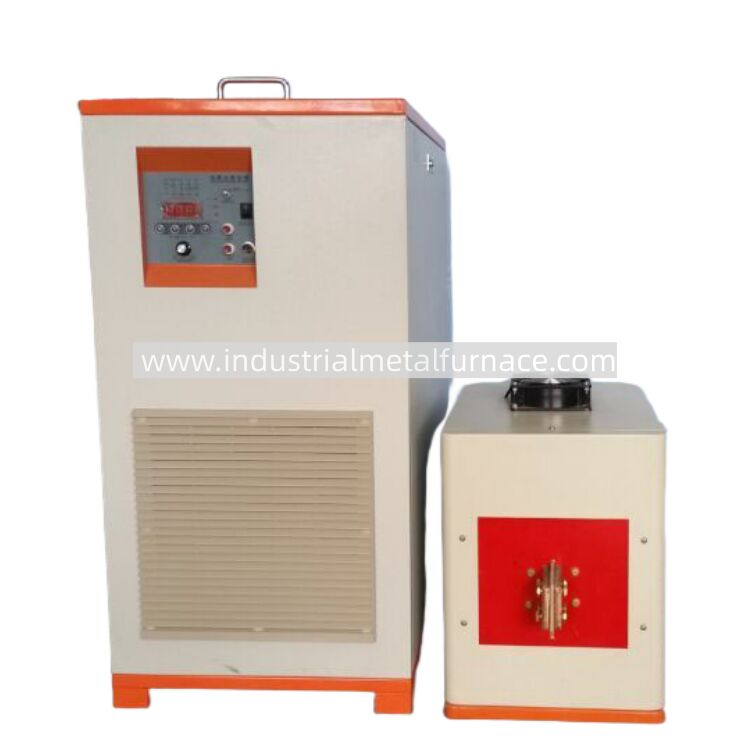

Compact and user-friendly, the system requires only basic electricity and cooling water connections, making installation straightforward. The split-design main and sub-units are connected via a 2-meter cable, offering flexibility in workshop layout. With a total weight of just 110 kg, the furnace saves valuable floor space and simplifies maintenance.

Key Technical Parameters:

Parameter	Specification
Max Input Power	70 KW
Input Voltage	3-Phase 380V, 50/60 Hz
Frequency Range	30–80 KHz
Cooling Water Requirement	0.2 MPa, 8 L/min
Duty Cycle	100%
Heating/Hold Time Setting	0.1–99.9 seconds
Total Weight	Approx. 110 kg

This medium frequency induction heater is widely used in forging, smelting, brazing, and hardening processes. It includes three copper induction coils for versatile application across different workpiece shapes and materials. The unit also displays real-time output power, frequency, and current for easy monitoring.
